Replacing the battery in a Lenovo ThinkPad X1 Carbon (or similar models) involves several steps. Make sure you have the correct replacement battery for your specific model before starting. Here’s a step-by-step guide:

Preparation

Power Down the Laptop:

• Shut down your Lenovo ThinkPad X1 Carbon completely.
• Disconnect all external devices (USB drives, external monitors, etc.).

Unplug the AC Adapter:

• Remove the power cable from the laptop to ensure no power is running to the device.

Gather Tools:

• You’ll need a small Phillips-head screwdriver and a plastic prying tool or spudger.

Replacing the Battery

1. Access the Battery

For X1 Carbon Gen 5 and Gen 6:

• Remove the Bottom Cover:
• Place the laptop on a clean, flat surface.
• Use a Phillips-head screwdriver to remove the screws securing the bottom cover. Keep track of the screws as they may vary in length.
• Carefully use a plastic prying tool to separate the bottom cover from the laptop. Gently work around the edges to avoid damaging the plastic clips.

For X1 Carbon Gen 7 and later:

• Remove the Bottom Cover:
• Similar to the Gen 5/Gen 6, remove the screws and carefully pry off the bottom cover.

2. Locate the Battery

• Identify the Battery:

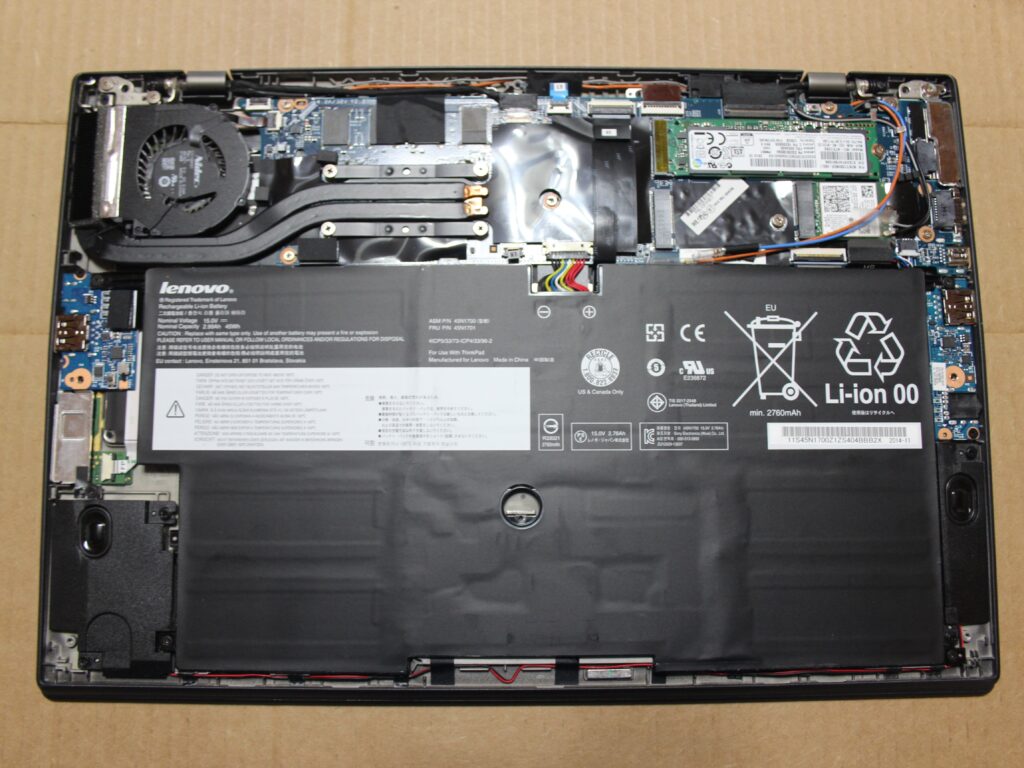

• Once the bottom cover is removed, locate the battery. It’s usually a large, rectangular component connected to the motherboard.

3. Disconnect the Battery

• Disconnect the Battery Cable:
• Carefully disconnect the battery cable from the motherboard. Gently lift the connector by its edges; avoid pulling on the wires themselves.

4. Remove the Old Battery

• Unscrew the Battery:
• If the battery is secured with screws, use a Phillips-head screwdriver to remove them.
• Carefully lift out the old battery from its compartment.

5. Install the New Battery

• Place the New Battery:
• Position the new battery in the compartment.
• Secure it with screws if necessary.
• Reconnect the Battery Cable:
• Gently connect the battery cable to the motherboard. Ensure it’s properly aligned and securely connected.

6. Reassemble the Laptop

• Replace the Bottom Cover:
• Align the bottom cover with the laptop’s base.
• Press it gently into place, ensuring that all clips are properly engaged.
• Screw the Bottom Cover:
• Reinstall the screws you removed earlier to secure the bottom cover.

7. Power On the Laptop

• Reconnect the AC Adapter:
• Plug the power adapter back into the laptop.
• Turn On the Laptop:
• Power on your Lenovo ThinkPad X1 Carbon and check if it recognizes the new battery.

Post-Replacement Steps

Check Battery Status:

• Go to Settings > System > Battery (in Windows) to verify that the new battery is recognized and charging correctly.

Perform a Battery Calibration (Optional):

• It’s sometimes recommended to calibrate the new battery by fully charging it, then allowing it to discharge completely, and recharging it to 100% again.
